V4A Boxen

The particle counter PCSS fluid transmits the ISO classes using two current interfaces. The double piston pump and the laser sensor ensure precise measuring results. Alternatively, you can operate the particle counter PCSS fluid without pump (CSS fluid, see brochure for liquids). In this case the constant flow needs to be ensured by the user.

All parameters (measuring time, particle size and thresholds) are parameterized using the computer. The particle count is transmitted to an evaluation system via the current interface 4-20 mA. The exceeding of thresholds can be queried at two potential-free contacts on the box.

Markus Klotz GmbH

Areas of application:

Filtration check, online monitoring of hydraulic oils, cleaning facilities, wear and tear monitoring during operation and/or start-up units, monitoring during filling/dispensing liquids.

Areas of application PCSS-fluid
Areas of application PCSS-fluid
Areas of application PCSS-fluid

Markus Klotz GmbH

Technical specifications:

  • Channels: 2 measuring channels, alternatively 2 ISO classes (freely selectable) and/or 2 NAS classes
  • Measured value output: 4-20 mA, resolution 10bit / RS 232 (download)
  • Power supply: 230 VAC +/+ 10%, max. 250W
  • Option: freely selectable interval time (max. 4 hours)

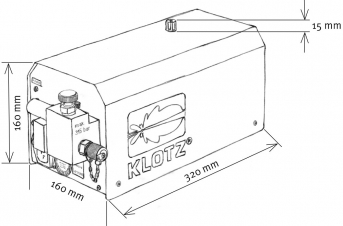

  • Dimensions (HxWxD): 160 x 160 x 320 mm
  • Weight: 6 kg
